2-Prolog et sémantique structurelle : (5 points)
:- op(900 , xfx , '<->'). :- op(900 , xfx , '<-'). :- op(600 , xfy , v). :- op(300 , xfy , &). complete2Prolog(P '<->' D , LS) :- impl2Prolog(P , D , LS). impl2Prolog(P , C v D1, LS) :- impl2Prolog(P , C , LS1), impl2Prolog(P , D1, LS2), append(LS1 , LS2 , LS). impl2Prolog(P , C , [P :- Q]) :- conj2Prolog(C , Q). conj2Prolog(P & true , P) :- !. conj2Prolog(true & C , Q) :- conj2Prolog(C , Q). conj2Prolog(P & C , (P,Q)) :- conj2Prolog(C , Q). conj2Prolog(P , P) :- member(P , [p,q,r,s,t , false]).
3-DCG : (6 points)
/*
* construction de l'AST selon la syntaxe abstraite ci dessus
*/
fcompl(equiv(P , D)) --> prop(P) , ['<->'] , disj(D).
disj(D) --> conj(D).
disj(ou(C , D)) --> conj(C) , [v] , disj(D).
conj(P) --> prop(P) .
conj(true) --> [true] .
conj(false) --> [false] .
conj(et(P , C)) --> prop(P) , [&] , conj(C).
conj(et(true , C)) --> [true] , [&] , conj(C).
conj(et(false , C)) --> [false] , [&] , conj(C).
prop(X) --> [X] , {member(X , [p,q,r,s,t])}.
%exemple de but :
?- fcompl(AST , [p,'<->',q,&,r,&,s, v, t,&,q, v, r] , []) , fcomplete2Prolog(AST , L).
AST = equiv(p, ou(et(q, et(r, s)), ou(et(t, q), r)))
L = [ (p:-q, r, s), (p:-t, q), (p:-r)]
avec le programme précédent modifié...
fcomplete2Prolog(equiv(P , D) , L) :- implInv2Prolog(P , D , L).
implInv2Prolog(P , ou(C , D), L) :-
implInv2Prolog(P , C , L1),
implInv2Prolog(P , D , L2),
append(L1 , L2 , L).
implInv2Prolog(P , C , [P :- Q]) :-
conjonc2Prolog(C , Q).
conjonc2Prolog(et(P , true) , P) :- !.
conjonc2Prolog(et(true , C) , Q) :- conjonc2Prolog(C , Q).
conjonc2Prolog(et(P , C) , (P,Q)) :- conjonc2Prolog(C , Q).
conjonc2Prolog(P , P) :- member(P , [p,q,r,s,t , false]).
4-Java : (5 points)
//public
class Fcompl{
private Prop p;
private Disj d;
public Fcompl(Prop tete,Disj alter){
p=tete;
d=alter;
}
public String getTete(){
return p.getNom();
}
public String toString(){
return p.getNom() + " <-> " + d.toString();
}
public String toProlog(){ //règle sémantique structurelle rf
return new Impl(p,d).toProlog();
}
}
//public
class Impl{
private Prop p;
private Disj d;
public Impl(Prop tete,Disj alter){
p=tete;
d=alter;
}
public String getTete(){
return p.getNom();
}
public String toString(){
return p.getNom() + " <- " + d.toString();
}
public String toProlog(){
if (d instanceof Ou){ // règle sémantique rd1
return
new Impl( p , ((Ou)d).c).toProlog()
+ new Impl( p , ((Ou)d).d).toProlog();
}
if (d instanceof Conj){ // règle sémantique rd2
return p.getNom()+ " :- " + d.toProlog()+ ".\n";
}
return "erreur de syntaxe...";
}
}
//public
abstract class Disj{
public abstract String toString();
public abstract String toProlog();
}
//public
class Ou extends Disj{
public Conj c;
public Disj d;
public Ou(Conj mg , Disj md){
c = mg;
d = md;
}
public String toString(){
return c.toString() + " v " + d.toString();
}
public String toProlog(){
return "";
}
}
//public
abstract class Conj extends Disj {
}
//public
class Prop extends Conj{
private String nom;
public Prop(String n){
nom=n;
}
public String getNom(){
return nom;
}
public String toString(){
return nom;
}
public String toProlog(){ // règle sémantique rq2
return nom;
}
}
//public
class Et extends Conj {
private Prop p;
private Conj c;
public Et(Prop mg,Conj md){
p = mg;
c = md;
}
public String toString(){
return p.toString() + " & " + c.toString();
}
public String toProlog(){ // règle sémantique rq1
return p.toProlog() + " , " + c.toProlog();
}
}
//public
class False extends Conj{
public String toString(){
return "False";
}
public String toProlog(){
return " false ";
}
}
//public
class True extends Conj{
public String toString(){
return "True";
}
public String toProlog(){
return " true ";
}
}
public class TestFCompl{
public static void main(String [] args){
Fcompl f=new Fcompl(
new Prop("p") ,
new Ou(
new Et(
new Prop("q") ,
new Et(new Prop("r") , new Prop("s"))),
new Ou(
new Prop("t"),
new Et(new Prop("q"),new True())
)));
System.out.println(f.toString());
System.out.println(f.toProlog());
}
}
>java TestFCompl
p <-> q & r & s v t & q v True
p :- q , r , s.
p :- t , q.
p :- true.

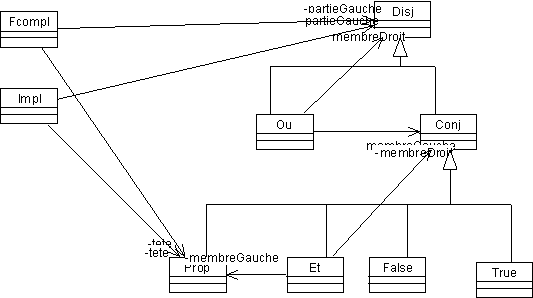

le graphe des classes :
